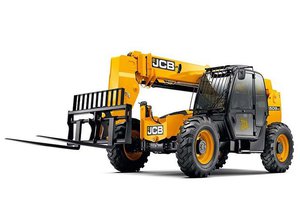

JCB 510-42 Telehandler
The JCB 510-42 telehandler is designed for maximum productivity. With a maximum capacity of 10,000 lb and no requirement for outriggers, operators are able to efficiently move from one project to the next, to complete more tasks.
The 510-42 is built with the benefit of JCB's 40 years of telehandler manufacturing experience. With a one-piece, fully welded chasis and JCB's U-profile boom that has been proven on more than 200,000 machines, the 510-42 delivers the strength and reliability necessary to complete any work site application.
Specifications
| Maximum Reach | 59.0 in |
| Maximum Lift Height | 504.0 in |
| Displacement | 268.0 cid |
| Engine Manufacturer | JCB |
| Horsepower | 109.0 hp |
| Power Mode | Diesel |
| Emissions Tier | Tier 4 Final |
| Hydraulic Tank Capacity | 33.3 gal |
| Operator Protection | ROPS/FOPS |
| Travel Speed | 15.5 mph |
| Drive | 4WD |
| Transmission | Hydrostatic |
| Ground Clearance | 15.0 in |
| Wheelbase | 124.0 in |
| Overall Width | 94.0 in |
| Overall Length | 255.0 in |
| Overall Height | 99.0 in |
| Operating Weight | 23858.0 lbs |
| Lift Capacity | 9920.0 lbs |
| Base Capacity | 10000.0 lbs |
Current Promotions
Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.
Reward yourself with service discounts when you purchase machinery with our customer rewards program, G.R.I.T. Advantage.
We're making a big deal about this big JCB deal for our customers. The Best value of the year with machines priced below cost. Upgrade your fleet now because when they're gone, they're gone!
Specifications and images may vary in accuracy.
