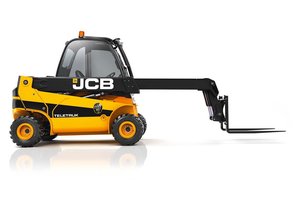

JCB 35D Teletruk
The Stage V JCB Teletruk range provides unrivalled forward visibility, forward reach and large lift capacity, dramatically improving safety, while saving time, space and money. The diesel Teletruk range is built to reach further in logistics, construction, waste and agriculture.
Specifications
| Drive Tire Size | 27 x 10 x 12 in |
| Steer Tire Size | 23 x 9 x 10 in |
| Boom Type | 2-Stage |
| Maximum Lift Height | 168.0 in |
| Maximum Reach | 95.0 in |
| Power Mode | Diesel |
| Number of Cylinders | 4.0 |
| Gross Horsepower | 60.2 hp |
| Torque @ RPM | 2,800 ft-lb |
| Displacement | 134.0 cid |
| Cooling Method | Liquid |
| Rated RPM | 2800.0 rpm |
| Aspiration | Natural |
| Horsepower | 62.0 hp |
| Maximum System Pressure | 2465.0 psi |
| Operator Protection | ROPS/FOPS |
| Number of Speeds | Variable |
| Transmission | Hydrostatic |
| Maximum Travel Speed | 20.0 mph |
| Drive System | 2WD |
| Overall Height | 87.0 in |
| Overall Length | 118.0 in |
| Overall Width | 50.0 in |
| Wheelbase | 76.0 in |
| Ground Clearance | 4.9 in |
| Operating Weight | 11220.0 lbs |
| Outside Turning Radius | 114.0 in |
| Front Overhang | 23.0 in |
| Minimum Boom Angle | 9.0 degrees |
| Maximum Boom Angle | 61.0 degrees |
| Base Capacity | 7000.0 lbs |
| Load Center | 24.0 in |
