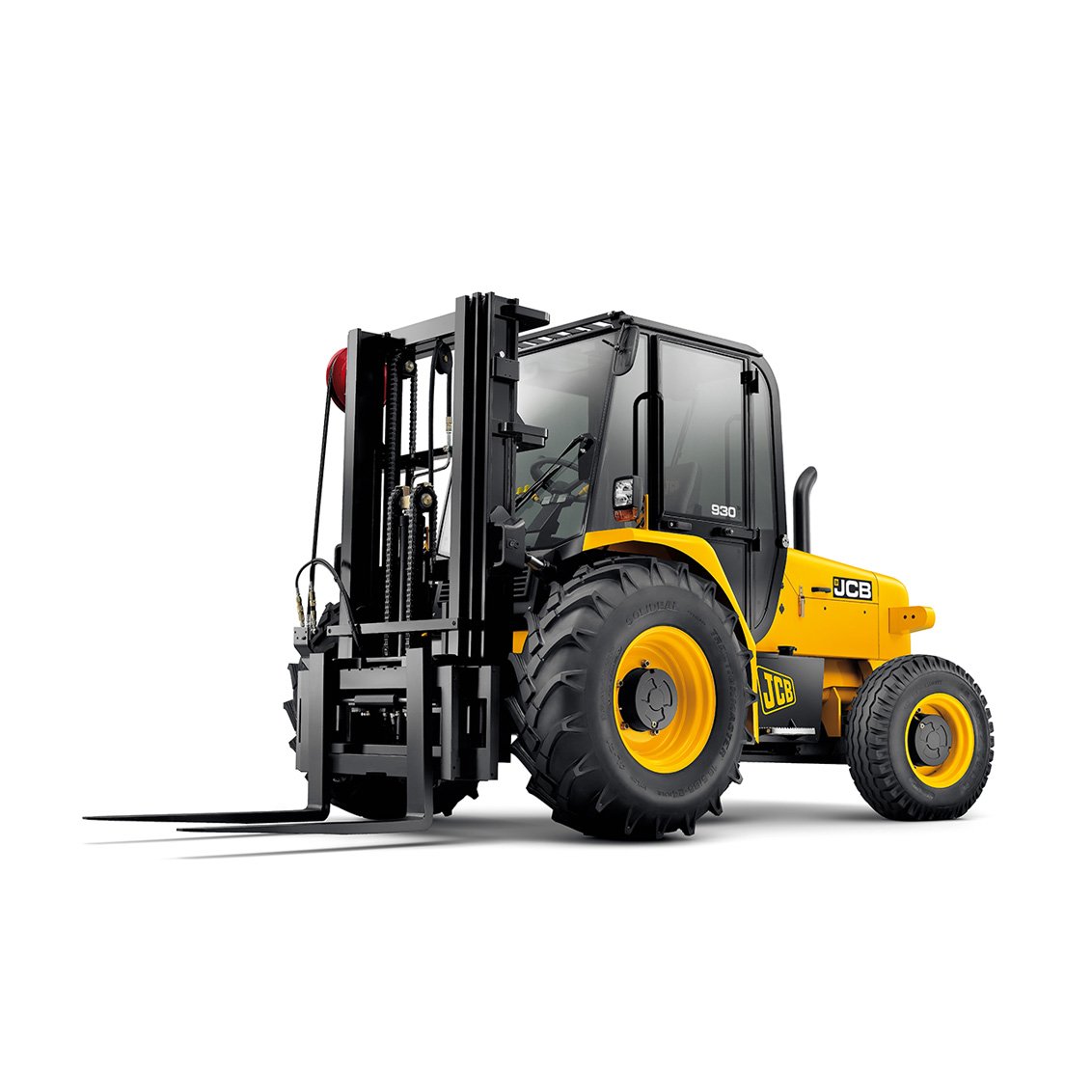

JCB 930 Rough Terrain Forklift
ROUGH TERRAIN FORKLIFT
The 6 ton (6,340kg) JCB 930 RTFL is powered by our highly efficient 74hp (55kW) EcoMAX engine and has a 6,000lbs (2,722kg) lift capacity. It has several mast options available so you can tailor your 930 RTFL to the perfect lift height.
- Masts are made from heavy-duty channel and I-section steel, alongside heavy-duty chains and guide roller bearings that are sealed for life.
- State-of-the-art manufacturing processes like robot machining, precision paint technology and innovative assembly techniques to achieve the highest levels of quality.
- Standard-fit tinted glass reflects 30% of solar energy.
- Choose from both suspension and air-suspension seating options.
- JCB's new 74hp (55kW) high-torque EcoMAX engine maximizes both productivity and efficiency.
- Every 4WD JCB RTFL can be changed to 2WD at the flick of a switch, reducing fuel consumption and tire wear whenever 4WD isn't required!
Specifications
| Brakes | Wet Disc |
| Rated RPM | 2200.0 rpm |
| Emissions Tier | Tier 4 Interim |
| Cylinders/Displacement | 4/268 |
| Engine | 4.4L |
| Engine Manufacturer | JCB |
| Power Mode | Diesel |
| Horsepower | 74.0 hp |
| Cooling System | Liquid |
| Lowered Overall Height | 98.0 in |
| Mast | 2-Stage Free Lift |
| Maximum Fork Height | 180.0 in |
| Steering | Hydrostatic |
| Drive System | 2WD |
| Transmission | Synchro-Shuttle |
| Number of Speeds | 4F/2R |
| Operating Weight | 13985.0 lbs |
| Overall Width | 90.0 in |
| Tread (Front/Rear) | 75/75 |
| Wheelbase | 108.0 in |
| Center of Wheelbase | 15.0 in |
| Fork Size (T x W x L) | 2 x 4 x 48 in |
| Height to Top Overhead Guard | 101.0 in |
| Overall Length | 142.0 in |
| Drive Tire Size | 15.5 x 25-8PR |
| Steer Tire Size | 14.5/75 16.1-10PR |
| Lift Capacity | 6000.0 lbs |
| Lifting Speed (Loaded/Unloaded) | 1.5/- ft/sec |
| Lowering Speed Loaded/Unloaded | 1.4/- ft/sec |
| Load Center | 24.0 in |
| Travel Speed Loaded | 18.0 mph |
