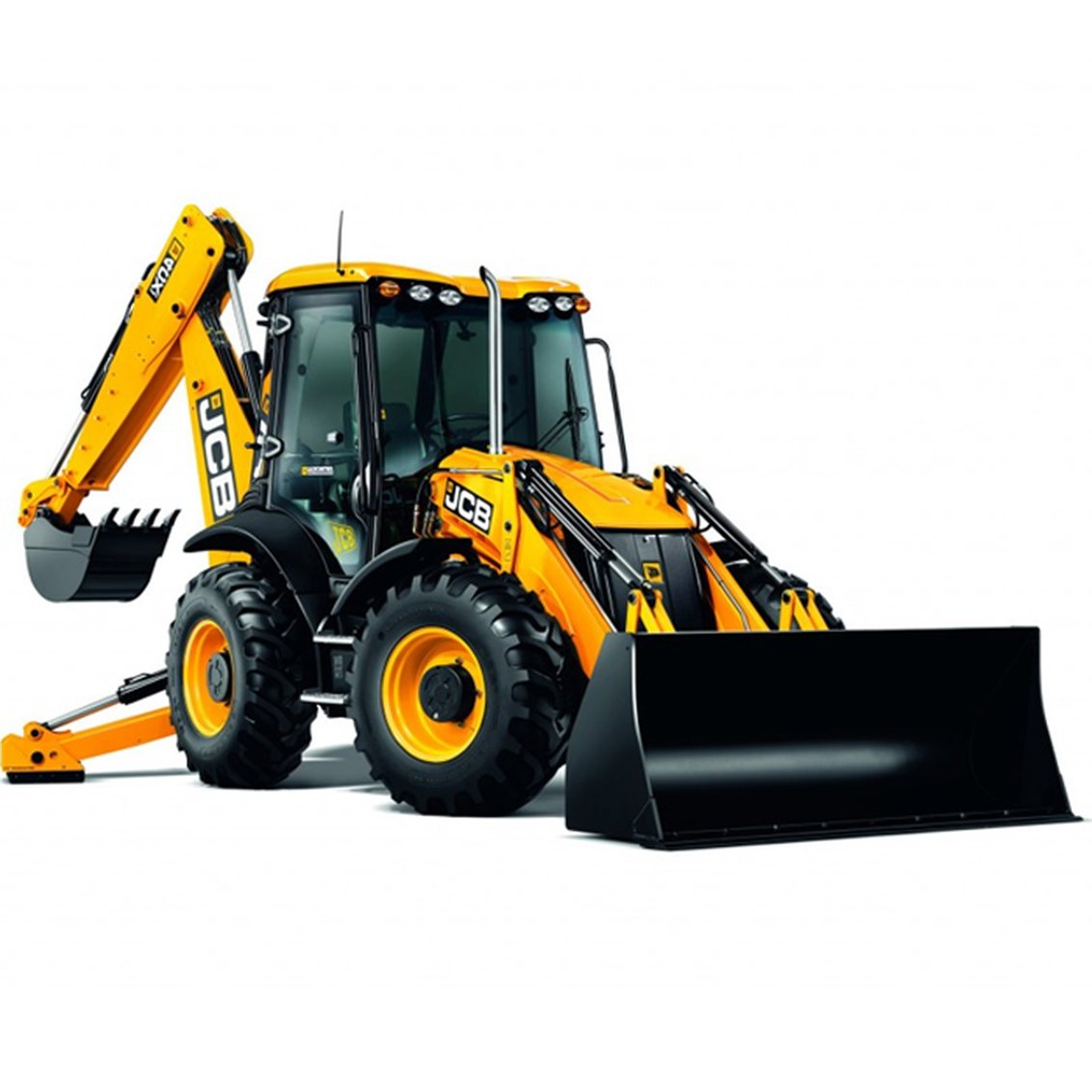

JCB 4CX Super Backhoe Loader
The primary design features of the 4CX-14 SUPER backhoe loader are the four equal-sized tires which provide high ground clearance and traction, and 4-wheel steer capability for enhanced maneuverability. Additionally, a host of performance, comfort, safety and efficiency enhancements enable this machine to tackle loading operations like no other.
Specifications
| Rear Tire Size | 440/80 R28 xMCP in |
| Front Tire Size | 440/80 R28 x MCL in |
| Backhoe Stick Force | 10245.0 lbs |
| Backhoe Bucket Breakout Force | 16387.0 lbs |
| Loader Bucket Width | 96.0 in |
| Loader Bucket Type | General Purpose/BOCE |
| Loader Breakout Force | 14528.0 lbs |
| Backhoe Bucket Capacity | 7.1 cu ft |
| Backhoe Bucket Width | 24.0 in |
| Backhoe Stick | Extendable |
| Rated RPM | 2200.0 rpm |
| Horsepower | 98.0 hp |
| Power Mode | Diesel |
| Hydraulic System Capacity | 33.4 gal |
| Hydraulic Tank Capacity | 22.0 gal |
| Fuel Tank Capacity | 42.5 gal |
| Hydraulic Pump | Gear |
| Pump Flow | 41.0 gal/min |
| Main Relief Pressure | 3650.0 psi |
| Operator Protection | EROPS |
| Steering Type | Hydrostatic |
| Number of Speeds | 4F/4R |
| Drive | 4WD |
| Transmission | Powershift |
| Transport Height | 154.0 in |
| Clearance Circle (Bucket Edge) | 421.0 in |
| Ground Clearance | 13.5 in |
| Height to Top of Cab | 117.0 in |
| Loader Dump Height | 106.0 in |
| Loader Dump Reach | 34.0 in |
| Loading Height | 156.0 in |
| Loading Reach | 78.0 in |
| Maximum Operating Height | 224.0 in |
| Overall Height (Bucket Raised) | 160.0 in |
| Overall Length | 294.0 in |
| Overall Width | 92.0 in |
| Reach from Swing Pivot | 233.0 in |
| Operating Weight | 20952.0 lbs |
| Digging Depth - Extended | 241.0 in |
| Digging Depth - Retracted | 195.0 in |
| Lift Capacity at Max. Height | 9652.0 lbs |
| Loader Digging Depth | 8.0 in |
