New Equipment

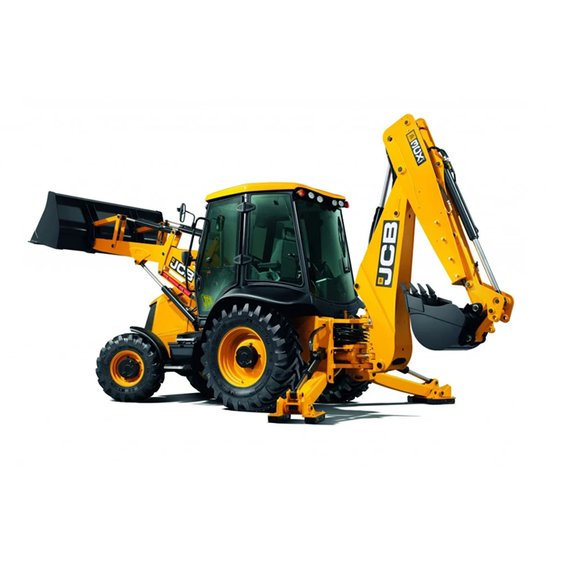

JCB 3CX Compact Backhoe Loader
35% smaller than your standard backhoe loader, the 3CX compact is designed for big performance in a small space. Perfect for confined and urban areas this backhoe loader has a tight turning circle of just 19 feet (5.8m).
Specifications
| Rear Tire Size | 19.5L x 24 in |
| Front Tire Size | 14 x 17.5 in |
| Backhoe Stick Force | 10245.0 lbs |
| Backhoe Bucket Breakout Force | 16387.0 lbs |
| Loader Bucket Width | 92.5 in |
| Loader Bucket Type | General Purpose/BOCE |
| Loader Breakout Force | 14498.0 lbs |
| Load Capacity | 1.4 cu yd |
| Backhoe Bucket Width | 24.0 in |
| Backhoe Stick | Extendable |
| Engine | 444.0 |
| Rated RPM | 2200.0 rpm |
| Horsepower | 97.6 hp |
| Engine Manufacturer | JCB |
| Power Mode | Diesel |
| Hydraulic System Capacity | 33.4 gal |
| Hydraulic Tank Capacity | 22.0 gal |
| Fuel Tank Capacity | 42.5 gal |
| Hydraulic Pump | Gear |
| Pump Flow | 41.0 gal/min |
| Main Relief Pressure | 3650.0 psi |
| Operator Protection | EROPS |
| Steering Type | Hydrostatic |
| Number of Speeds | 4F/4R |
| Drive | 4WD |
| Transmission | Powershift |
| Transport Height | 154.0 in |
| Clearance Circle (Bucket Edge) | 409.0 in |
| Ground Clearance | 11.0 in |
| Height to Top of Cab | 117.0 in |
| Loader Dump Height | 108.0 in |
| Loader Dump Reach | 32.0 in |
| Loading Height | 156.0 in |
| Loading Reach | 78.0 in |
| Maximum Operating Height | 224.0 in |
| Overall Height (Bucket Raised) | 163.0 in |
| Overall Length | 295.0 in |
| Overall Width | 92.0 in |
| Reach from Swing Pivot | 233.0 in |
| Operating Weight | 17683.0 lbs |
| Digging Depth - Extended | 241.0 in |
| Digging Depth - Retracted | 195.0 in |
| Lift Capacity at Max. Height | 10225.0 lbs |
| Loader Digging Depth | 2.0 in |
