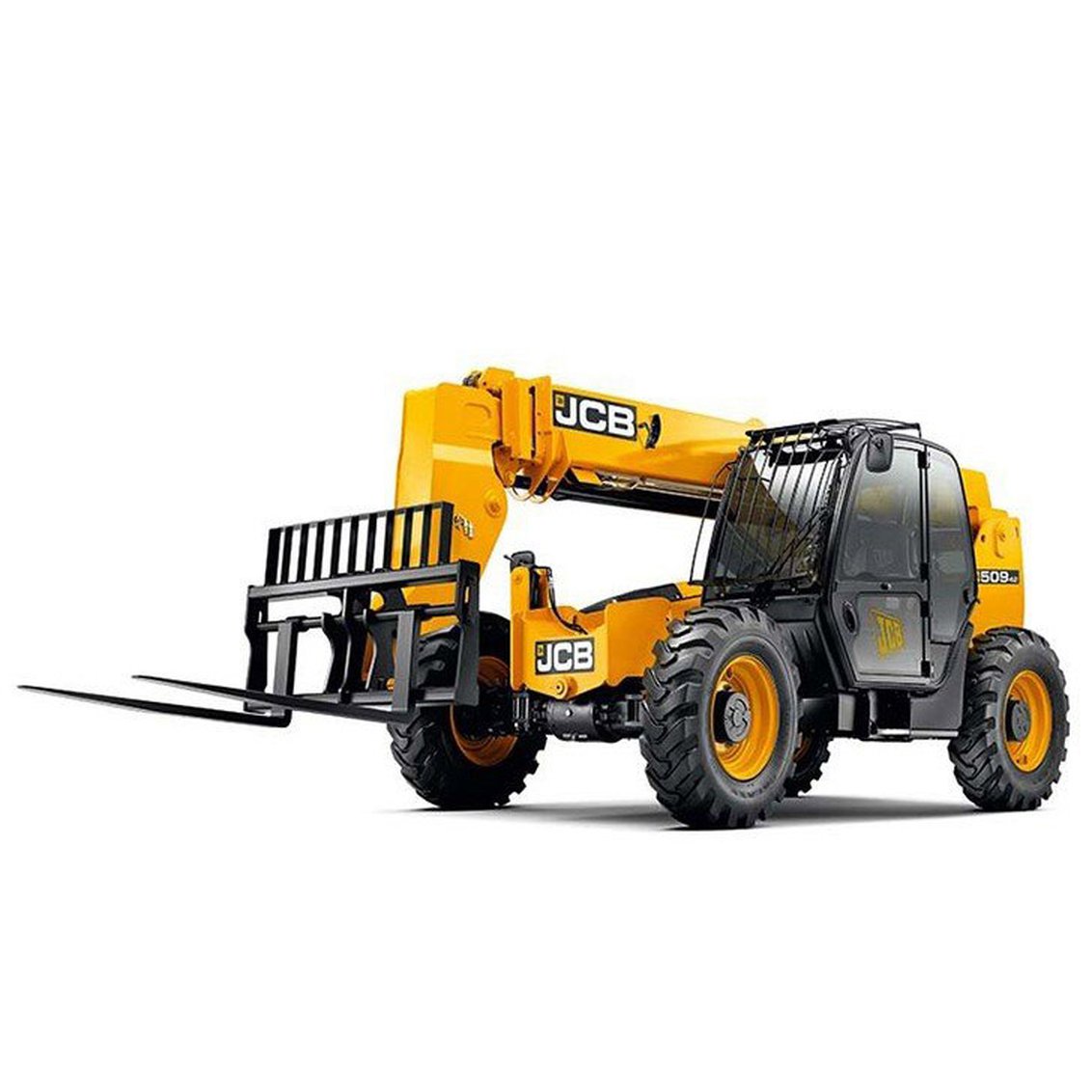

JCB 509-42 Telehandler
Specifications
| Drive Tire Size | 14.00-24 16PR in |
| Steer Tire Size | 14.00-24 16PR in |
| Boom Type | Telescopic |
| Maximum Reach | 336.0 in |
| Maximum Lift Height | 504.0 in |
| Parking Brake | Disc |
| Service Brake | Multi-Disc |
| Number of Cylinders | 4.0 |
| Displacement | 269.0 cid |
| Engine Model | DieselMax |
| Engine Manufacturer | JCB |
| Horsepower | 109.0 hp |
| Aspiration | Turbocharged |
| Power Mode | Diesel |
| Emissions Tier | Tier 4 Interim |
| Torque @ RPM | 324.0 ft-lb |
| Gross Horsepower | 109.0 hp |
| Cooling Method | Liquid |
| Rated RPM | 2200.0 rpm |
| Hydraulic System Reservoir | 34.0 gal |
| Fuel Tank Capacity | 35.0 gal |
| Cooling System Capacity | 6.0 gal |
| Maximum System Pressure | 3770.0 psi |
| Hydraulic Pump | Gear |
| Cab Width | 37.0 in |
| Operator Protection | ROPS/FOPS |
| Steering | 2W/4W/Crab |
| Maximum Travel Speed | 15.5 mph |
| Transmission | Powershift |
| Drive System | 4WD |
| Outside Turning Radius | 165.0 in |
| Ground Clearance | 15.5 in |
| Wheelbase | 124.0 in |
| Overall Width | 94.0 in |
| Overall Length | 247.0 in |
| Overall Height | 99.0 in |
| Operating Weight | 22430.0 lbs |
| Tread (Front/Rear) | 79/79 in |
| Maximum Boom Angle | 69.0 degrees |
| Minimum Boom Angle | 5.8 degrees |
| Base Capacity | 9000.0 lbs |
